Gutter Connected Greenhouses
Harnois Luminosa
The Luminosa gutter-connected greenhouse stands out with a gutter height of up to 20 feet, maximizing natural light and air volume. This configuration promotes a stable climate, excellent ventilation, and superior working comfort. Perfect for multi-variety production, it is ready to accommodate advanced automation systems. A strategic choice to boost performance per square foot while focusing on flexibility and efficiency.
Available in 21-4, 24, 25, 26-3, 28, 30, 31-6 and 36 (ft) for Canada and United States.
For Mexico, the Luminosa is available in 31-6, 36, 47 and 53 (ft).
Gutter Height: 12′ to 20′
Luminosa Gutter Connected Greenhouses - Features
- 3 series available (8, 9, 11 & Mex)
- Roof Type: Inflated Double polyethylene films (7.2 mil) or single or twin wall polycarbonate sheets (8mm)
- Arch spacing: 3’, 4', 5' and 6'
- Galvanization: 40+ years
- Pre-Drilled Sections: Limited usage of self-drilling screws and drilling on site
- Foundations: Anchor plates, Concrete Piers or Sonotube
- Engineered to comply with Building Codes IBC, Canada & USA
- Gothic arch design promotes efficient snow, wind, and hail shedding
Luminosa Gutter Connected Greenhouses - Available Widths
S8 - 21
- Widths: 21 ft 4in
- Under gutter : 12 ft to 20 ft
- Gable: 7 ft 3 in
S8 - 24
- Widths: 24 ft
- Under gutter : 12 ft to 20 ft
- Gable: 7 ft 10 in
S8 - 25
- Widths: 25 ft
- Under gutter : 12 ft to 20 ft
- Gable: 8 ft 1 in
S8 - 26
- Widths: 26 ft 3 in
- Under gutter : 12 ft to 20 ft
- Gable: 8 ft 4 in
S9 - 28
- Widths: 28 ft
- Under gutter : 12 ft to 20 ft
- Gable: 8 ft 10 in
S9 - 30
- Widths: 30 ft
- Under gutter : 12 ft to 20 ft
- Gable: 9 ft 3 in
S9 - 31
- Widths: 31 ft 6 in
- Under gutter : 12 ft to 20 ft
- Gable: 9 ft 7 in
S11 - 36
- Widths: 36 ft
- Under gutter : 12 ft to 20 ft
- Gable: 10 ft 3 in
MX - 9
- Widths: 9,6m (31 ft 6 in)
- Under gutter : 6,5m (21 ft 4 in)
- Gable: 2,9m (7 ft 3 in)
MX - 11
- Widths: 11m (36)
- Under gutter : 6,5m (21 ft 4 in)
- Gable: 3,2m (10 ft 3 in)
MX - 12
- Widths: 12,8m (42 ft)
- Under gutter : 6,5m (21 ft 4 in)
- Gable: 3,7m (12 ft)

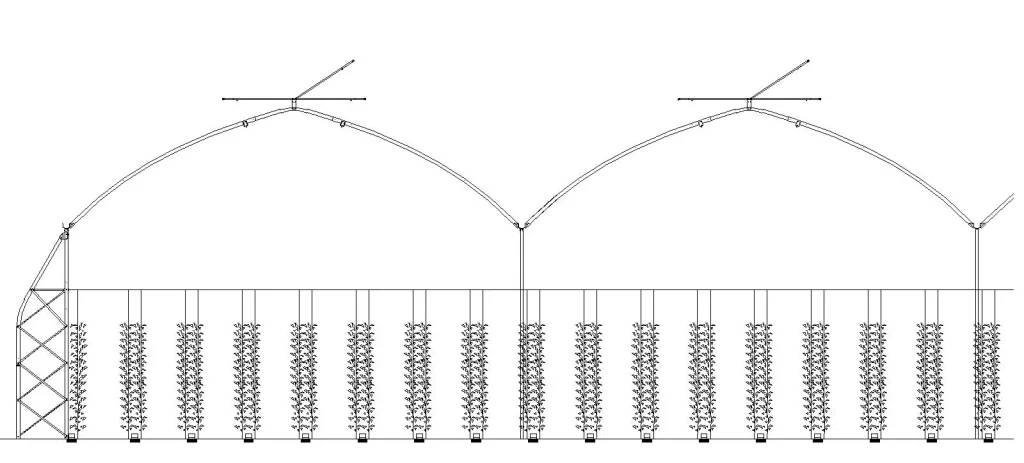

MX - 14
- Widths: 14,4m (47 ft)
- Under gutter : 6,5m (21 ft 4 in)
- Gable: 4,1m (13 ft 3 in)
Gutter Connected Greenhouses - Options

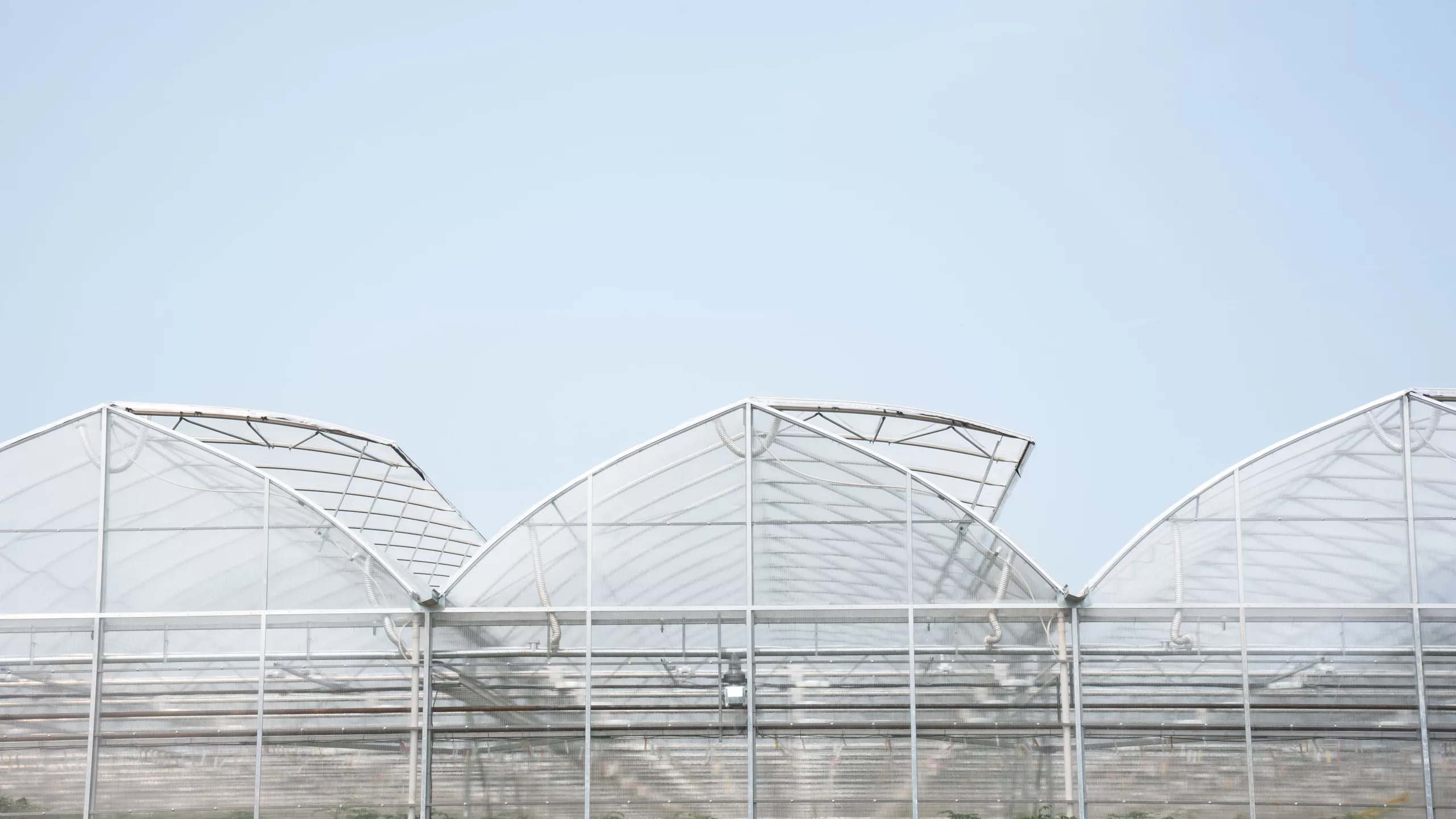

Ridge Ventilation
- Single or double ridge vent panels
- Mid-roof vent
- Polycarbonate
Lateral Ventilation
- Full roll-up ventilation
- Partial roll-up ventilation
- Roll-up ventilation on a solid wall
- Mechanized ventilation (cooling pad)
- Panel
Equipments
- Climate Control
- Screens
- Irrigation Robots
- Irrigation
- Heating
- Climate Screens
- Insect Screens
- Lighting
- Doors
- Substrate
Gutter Connected Greenhouses Description
Gutter connected greenhouses like the Luminosa are an excellent choice, designed to optimize crop production while providing a durable and reliable growing space that stands the test of time.
These gutter connected greenhouses is ideal for high-density, commercial multi-crop production due to its large, modular structure and efficient environmental control. With bay widths ranging from 21’4″ (3,7m) to 36′ (16,2m), the Luminosa maximizes usable growing areas, boosting crop development and operational efficiency.
Crafted from certified structural steel with a minimum strength of 50 ksi, the Luminosa is 52% stronger than standard commercial steel tubing. Its oval design minimizes wear on polyethylene films, extending their lifespan and ensuring a durable, long-lasting environment.
These gutter connected greenhouses maximize crop growing space with an under-gutter height of 12 to 20 feet.
It offers multiple ventilation options, including single or double ridge vent panels, mid-roof vents, side roll-up vents (manual or automated), and mechanical ventilation systems (fans, extractors, and air circulators). These features provide superior natural ventilation and effectively reduce water, ice, and snow buildup, creating an optimal growing environment for all seasons.
