Luminosa
Up to 20' under gutter and 36' wide

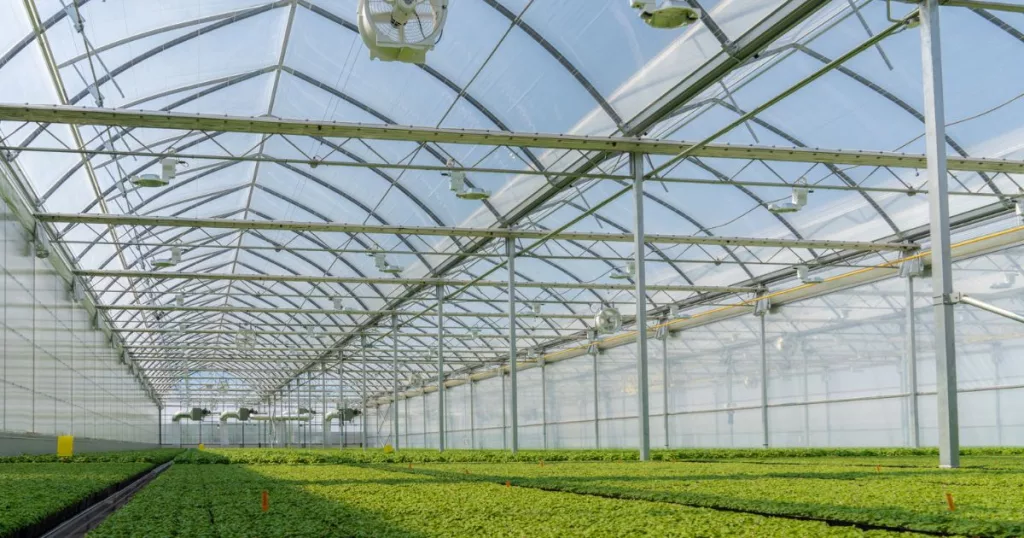

The Luminosa greenhouse stands out with a gutter height of up to 20 feet, maximizing natural light and air volume. This configuration promotes a stable climate, excellent ventilation, and superior working comfort. Perfect for multi-variety production, it is ready to accommodate advanced automation systems. A strategic choice to boost performance per square foot while focusing on flexibility and efficiency.
Suitable for
- Soft fruits
- Vegetables & Herbs
- Flowers
- Ornamental Plants
- Tree & Shrub Seedlings
- Leafy Greens
- Specialty Crops
Made in Canada, shipped worldwide.
Local installation across Canada, USA, and Mexico.
Product Benefits
- Greater air volume creates a more stable climate at plant level.
- Redesigned gutters: Provide increased light transmission and better energy efficiency
- Easy expansion: Allows for simple extension of an existing greenhouse.
- Automation-ready: Easily integrates advanced automated systems.
- Large growing area: Maximizes usable space for crops.
- Improved condensation control: 45° ridge angle ensures effective humidity management.
- Easy integration: Can be used as an integrated service building.
Key Features
- Heated gutter-connected greenhouses
- Large-scale production projects
- Double-inflated polyethylene
- High wind & snow load resistance
- Design compliant with International Building Code (IBC) standards
Gutter-Connected Greenhouses
Luminosa 8 / 9 / 11
- Widths: 21‘4” to 53’2” (3,7m to 16,20m)
- Lengths: Depending on your needs
- Gutter Height: 10’ to 20′ (3m to 6m)
Gothic Arches
All our structures are made from oval galvanized steel (galvalume).
The rounded shape helps extend the lifespan of polyethylene films.
Galvanization is sealed with a clear coating that prevents black marks on the covering.
- 14 or 16 gauge
- 1 5/8, 2' or 2 3/4''
Posts
Designed in two parts, the posts are assembled using an expanded section that fits precisely into the lower part. This unique assembly ensures the structural integrity of the greenhouse and allows it to withstand higher loads.
- Dimensions : 2.5‘‘x 3.5‘‘ or 3.5‘‘ x 3.5‘‘
Gutters
Luminosa gutters, supported by robust one-piece brackets, distribute snow loads evenly and efficiently drain rainwater, while reducing shading and thermal bridging inside the greenhouse.
Options
- Foundations Options:
- Anchor plates
- Concrete Piers / Sonotube
- Covering Options:
- Inflated Double polyethylene films (7.2 mil)
- Single or twin wall polycarbonate sheets (8mm)
- Ventilation options
- Single or double ridge vent panels
- Mid-roof vent
- Side roll-up vent (manual or automated)
- Mechanical ventilation (fan, extractor and air circulator)
- Equipment
- Irrigation Robots
- Hydroponics
- Benches
- Heating
- Thermal Screens
- Insect Screens
- Lighting
- Climate Control
- Substrate
ROI (Return on Investment)
Gutter-connected greenhouses like the Luminosa are an excellent choice, designed to optimize crop production while providing a durable and reliable growing space that stands the test of time.
These gutter-connected greenhouses is ideal for high-density, commercial multi-crop production due to its large, modular structure and efficient environmental control. With bay widths ranging from 21’4″ (3,7m) to 36′ (16,2m), the Luminosa maximizes usable growing areas, boosting crop development and operational efficiency.
Crafted from certified structural steel with a minimum strength of 50 ksi, the Luminosa is 52% stronger than standard commercial steel tubing. Its oval design minimizes wear on polyethylene films, extending their lifespan and ensuring a durable, long-lasting environment.
These gutter connected greenhouses maximize crop growing space with an under-gutter height of 10 to 20 feet.
It offers multiple ventilation options, including single or double ridge vent panels, mid-roof vents, side roll-up vents (manual or automated), and mechanical ventilation systems (fans, extractors, and air circulators). These features provide superior natural ventilation and effectively reduce water, ice, and snow buildup, creating an optimal growing environment for all seasons.
